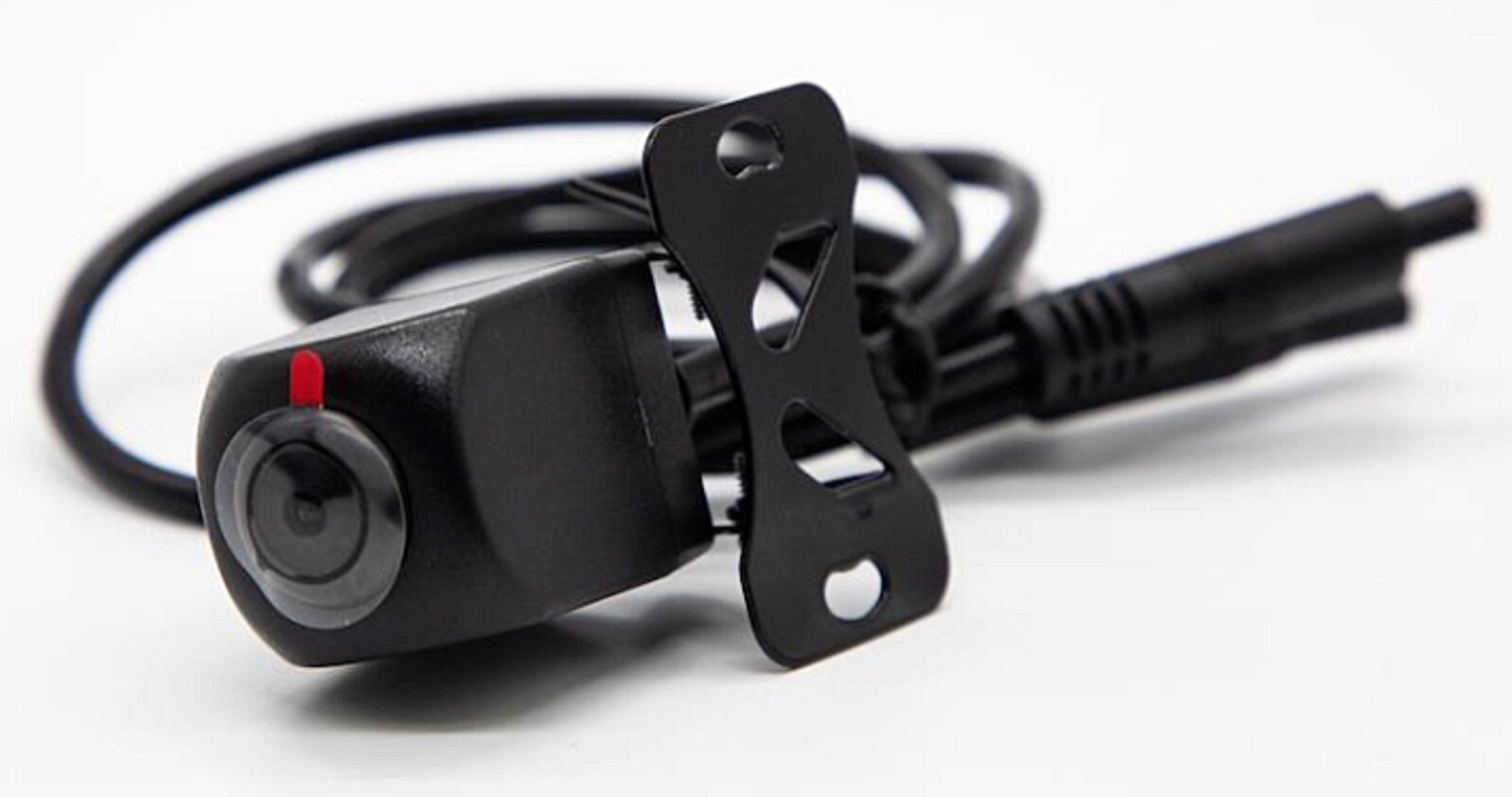

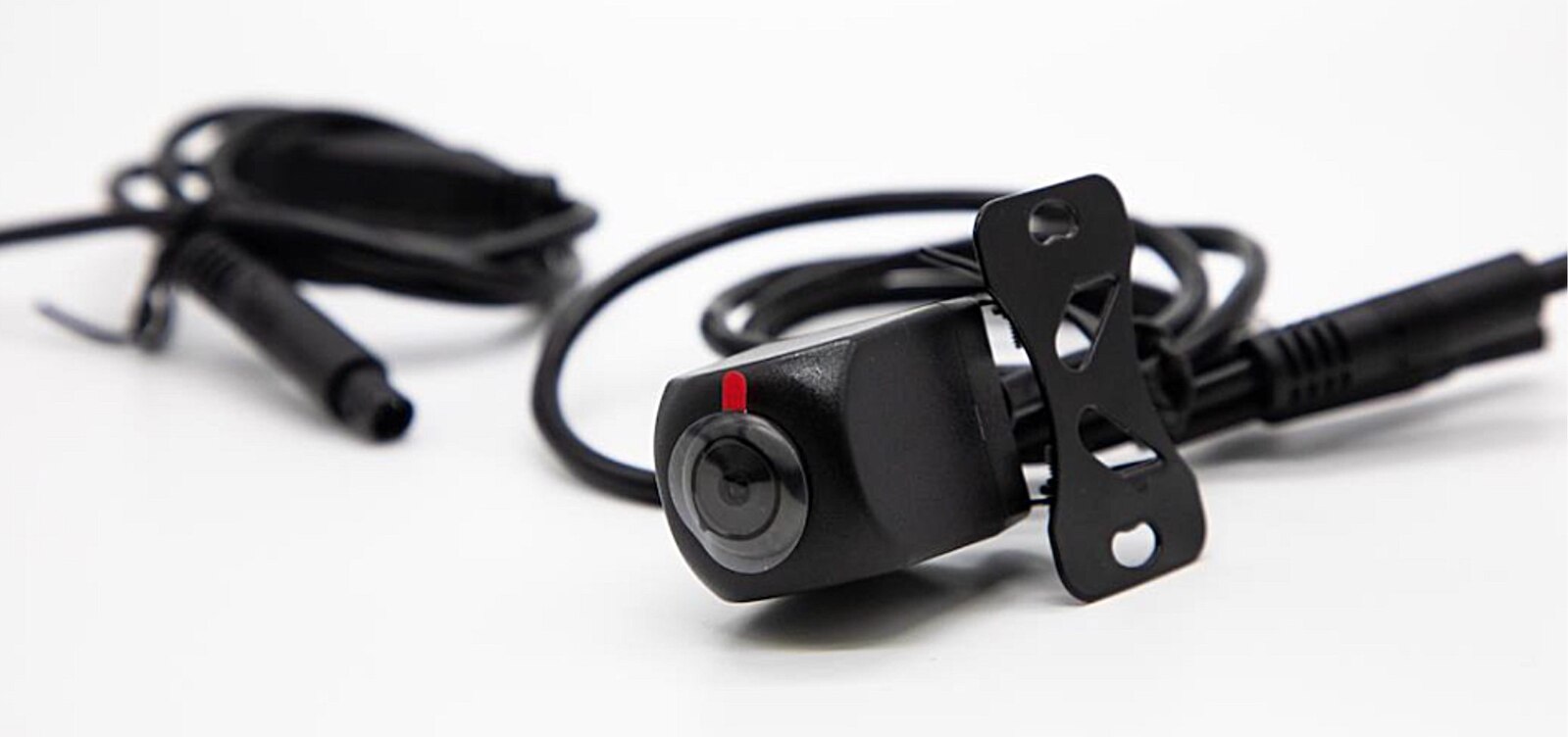

Hema's Wi-Fi reversing camera used in conjunction with the Hema HX-2 Navigator offers enhanced rearward visibility for drivers and, thus, help minimise the risk of "blind zone" accidents whenever your vehicle is moving in reverse. This wireless backup camera helps you easily spot vehicles, pedestrians, pets and other hard-to-see obstructions behind your vehicle.
Suitable for both 12v and 24v vehicles (camera and transmitter are compatible from 9 to 28 Volts).
Features:
- COMPATIBILITY - Works seamlessly with Hema HX-2 Navigator
- WIDE FIELD OF VIEW - 160-degree wide-angle field of view; shows what’s behind your vehicle when in reverse
- BUILT-IN WI-FI - Built-in Wi-Fi® connectivity transmits live camera view from the reversing camera directly to your HX-2 navigator’s display
- WIRELESS RANGE - Transmits camera footage up to 100cm's away (range varies based on installation)

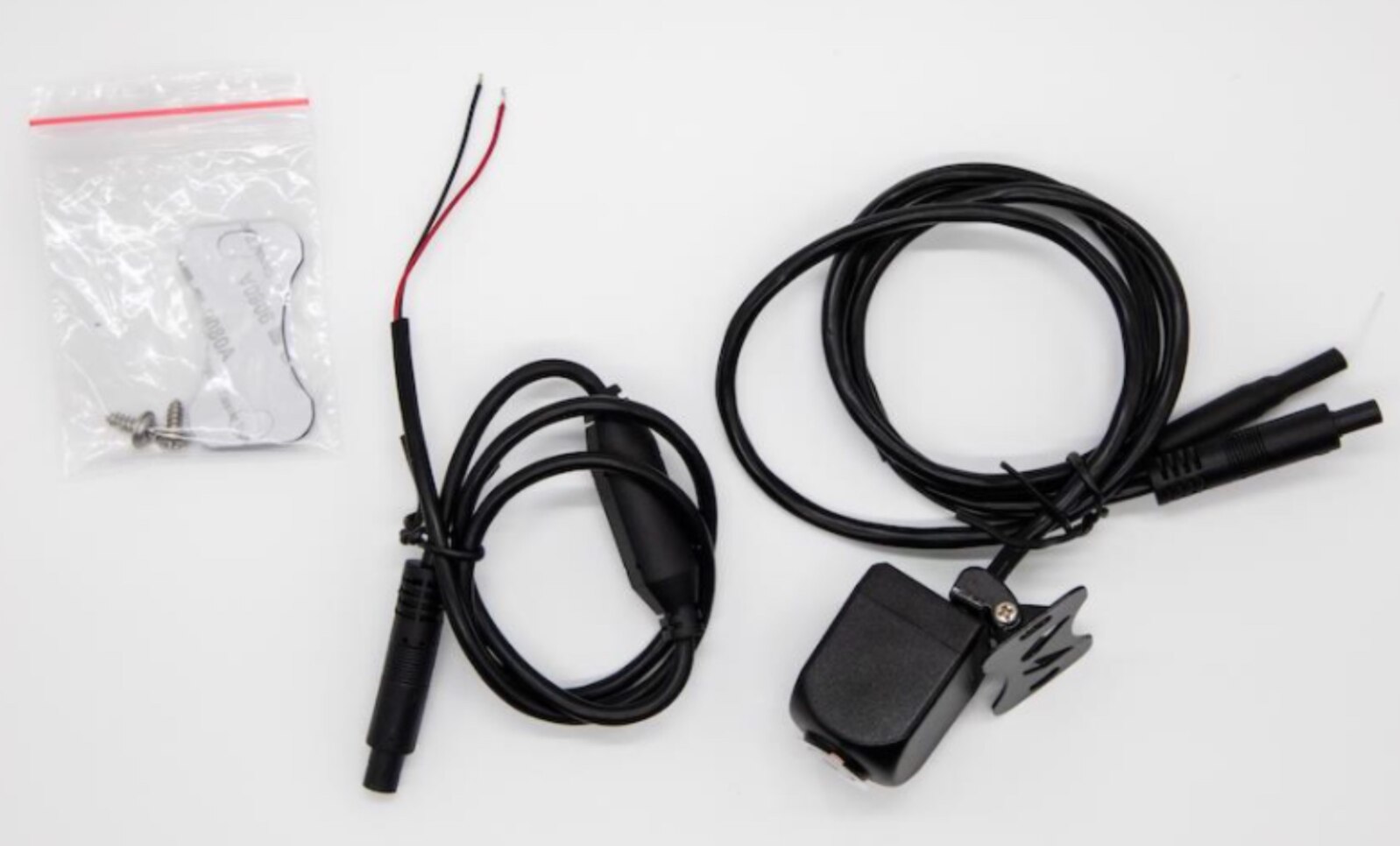

What's in the box:
- Wifi Camera
- Camera Mount
- Mounting Instructions
Note: Initial install of reversing camera needs to be wired by a qualified auto electrician. Following install, the camera operates via Wi-Fi. Wi-fi signal performance can be impacted by obstructions. This device is designed specifically for vehicle use and performance with camper trailers/caravans may vary.
Key Specifications:
Recieve | WIFI | Android OS |
Power ON | 1.0 S | |
Latency | 120ms | |
Function | Resolution | VGA |
Frame Rate | 30f/s | |
Video Codec | MPEG4 | |
Video in System | PAL | |
Video Characteristics |
Video Output impedance | 75Ω, Typ |
Video Output Level | 1.2 Vp-p, Typ. | |
S/N | 50dB, Min | |
RF Specification | Operation Frequency | 2412 ~ 2483.5MHz (WIFI 802.11 g/n) |
RF Impedance | 50Ω, Typ. | |
Receiving Sensitivity | -89dBm | |
Output Power | 12dBm | |
RF Bit Rate | 11Mbps | |
Modulation | QPSK,16QAM | |
Channel | CH1 to CH 13 | |
DC | Power Supply | DC 9-16V/200mA |
Environmental Specification |
Operating Temperature | -20°C~70°C |
Storing Temperature | -30°C~85°C | |
Operating humidity | Humidity 90% | |
Others | Unit Dimension(mm) | 45 x 48 x 15.6mm |
Unit Weight | Item weight: 50.0g |
(9321438002475)
SKU | 9321438002475 |
Barcode # | 9321438002475 |
Brand | Hema Maps |
Shipping Weight | 0.6000kg |
